Jaguar ABS

This is the first ABS module repair by Dan Jensen

This procedure will provide you with cleaning the wheel sensors and ABS module repair by Paul Bush

ABS Testing and Check list by G Emmerson


This is a modification by Marc for the ABS repair.  I like the repair and wanted to bring it to you.

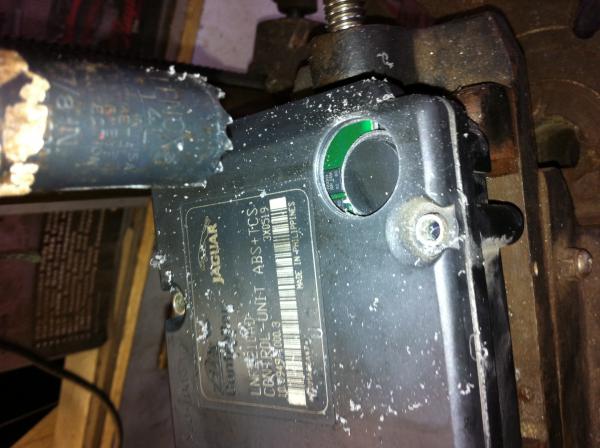

Traction control module repair, a different but faster, easier way to address opening  the sealed case issue using a bit-less hole saw in a drill press.


http://www.jaguarforums.com/forum/attachments/xk8-xkr-17/28420-front-brakes-2001-xkr-marc-28137-albums-jag-repairs-6247-picture-img-3079-using-hole-saw-without-drill-bit-access-trac-jpg?dateline=1356098433

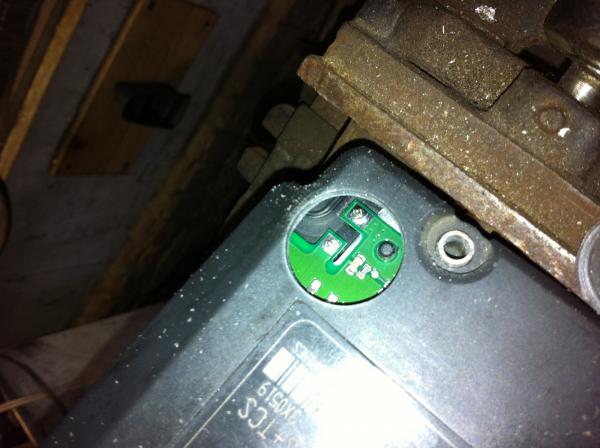

http://www.jaguarforums.com/forum/attachments/xk8-xkr-17/28421-front-brakes-2001-xkr-marc-28137-albums-jag-repairs-6247-picture-img-3080-re-solder-2-lugs-16380-jpg?dateline=1356098433
These solder joints appear to be in good condition, but re-soldering them anyway cured the problem on a 2001 XKR, (without Brembo Brakes)

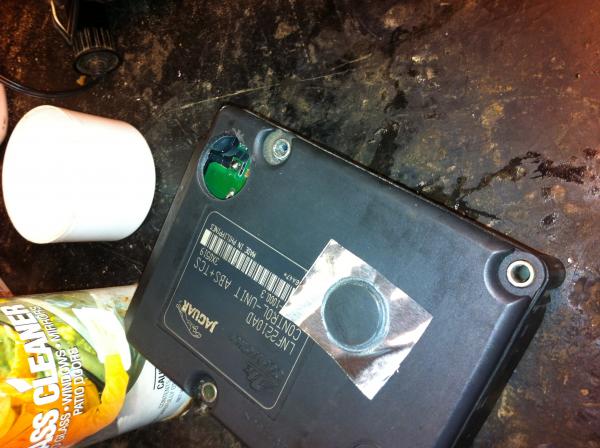

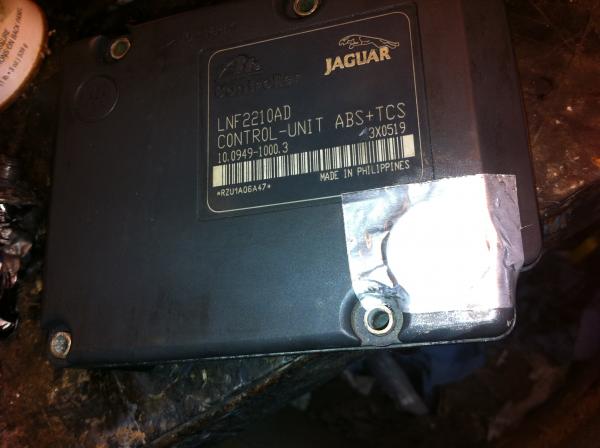

http://www.jaguarforums.com/forum/attachments/xk8-xkr-17/28422-front-brakes-2001-xkr-marc-28137-albums-jag-repairs-6247-picture-img-3081-metal-roofing-tape-odor-free-rtv-re-seal-mod-jpg?dateline=1356098433

Another brake tip:  How many times does your auto parts house not have a listing for your XKR part? Instead of going to the dealer for a front caliper reseal and boot kit, ask them for a seal kit for a BMW 5 series. They are the same. They usually have a listing for those and usually in stock too. Although the whole caliper doesn't fit, the rubber parts fit my car perfectly.

http://www.jaguarforums.com/forum/attachments/xk8-xkr-17/28423-front-brakes-2001-xkr-marc-28137-albums-jag-repairs-6247-picture-img-3082-16382-jpg?dateline=1356100896
